Low Tension Instrument Transformers


Low Tension Instrument Transformers

Low Tension Current Transformers are suitable for measuring current in energy meters and switchgear panels with rated frequency 50Hz or 60Hz with nominal system voltage 415 V.

Applicable Standards-IEC61869 and IS16227

Structure and Feature
  •   Epoxy resin cast for indoor or Cycloaliphatic cast for outdoor purposes
  •   Zero hassle in maintenance
  •   Special provision for mounting
  •   Customized structures as per your requirement.
  •   Excellent performance
Ratings
Rated Primary Current 10000Amp (Max)
Rated Secondary Current 5Amp, 1Amp, 0.577Amp
Nominal System Voltage Up to 0.66kV
No. of Secondary Cores As per customer requirement and specifications
CT Rated accuracy Classes 0.1, 0.2, 0.2s, 0.5s, 1.0, 3.0
CT Rated accuracy Classes – Protection 5P5, 5P15,5P20,10P10, 10P15,10P20

Low Tension Instrument Transformers Products Type

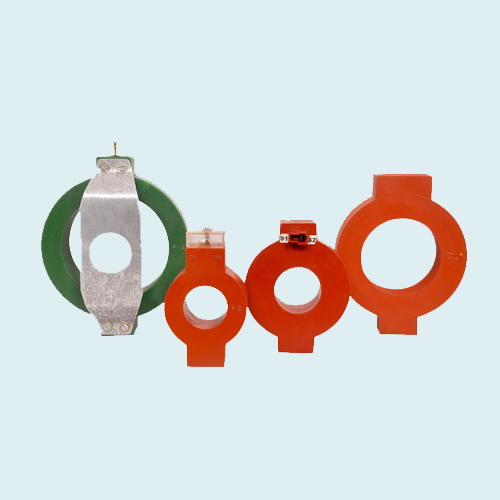

Ring Type
Ring Type
nylon casing
ABS Casing

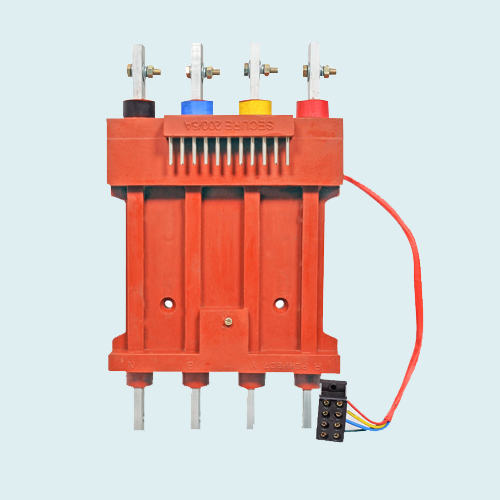

3 Phase CT
3 Phase CT

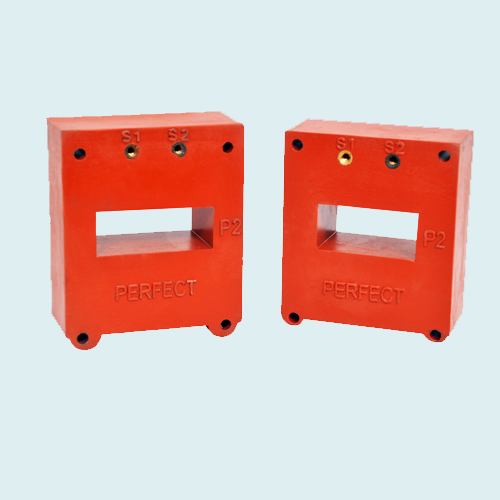

Bar Type
Bar Type

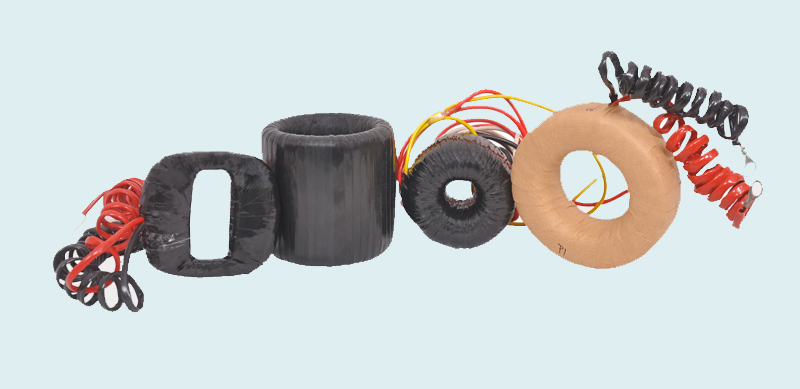

Tape Wound
Tape Wound
