We Design, engineer, assemble and manufacture Metering Panel. Our standard panel is dust and vermin proof and totally enclosed with MS Sheet. It has two separate compartments; the upper one shall house for energy meter with associated wiring and shall be termed as ""Meter compartment"". The other section i.e. lower compartment shall house the 1Ph, dry type epoxy resin casted CT (3 Nos.) and,1 Ph, dry type epoxy resin casted PT (3 Nos.) or 1 no. 3ph PT shall be termed as ""HT CT/PT compartment"". A separate and independent vermin proof door is provided for each of the upper and lower compartments with provision of locking and sealing arrangement.

There shall be one fixed glass window fitted with transparent acrylic glass to enable the meter reader to note down the reading without opening the door of the panel.

Apart from this, we design and manufacture metering panels as per customer specification. All panels confirm to IEC 61869-1 & 2.



Low tension Metering cubicle

Applications

LT - CT metering panel is suitable for measuring energy consumption and current in electrical distribution grids with rated frequency 50Hz or 60Hz with nominal system voltage 415 V. The panel are available for both 1-phase and 3-phase systems .

Applicable Standards-IEC61869,IS16227 and IS14772 - 2000

Structure and Feature

Metallic or Polycarbonate enclosure fitted with 4 numbers single phase epoxy cast Current transformers or 1number epoxy cast 3 phase Current transformer.

The polycarbonate enclosure is fire retardant, self extinguishing, UV stabilized with anti oxidation Properties.


Pilfer Resistant HT Metering Cubicle up to 33 KV

Pilfer Resistance Metering Cubicle is suitable for measuring energy consumption and current in electrical distribution grids with rated frequency 50Hz or 60Hzwith nominal system voltage up to 33KV.

Applicable Standards -IEC61869,IS16227 and IS3427 -1997

Structure and Feature

CT-PT bank consisting of 3 number single phase epoxy cast Current transformers and 1 number - 3 phase epoxy cast PT or 3 numbers 1 phase epoxy cast PT inside metallic enclosure.

Image To Zoom

Metering Cubicles Products Type

3 Phase CT inside Polycarbonate Cubicle
3 Phase CT inside Polycarbonate Cubicle

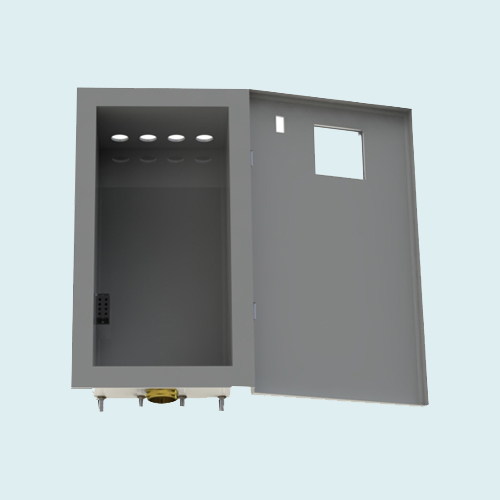

LT-CT Metering Cubicle
LT-CT Metering Cubicle
Medium Voltage

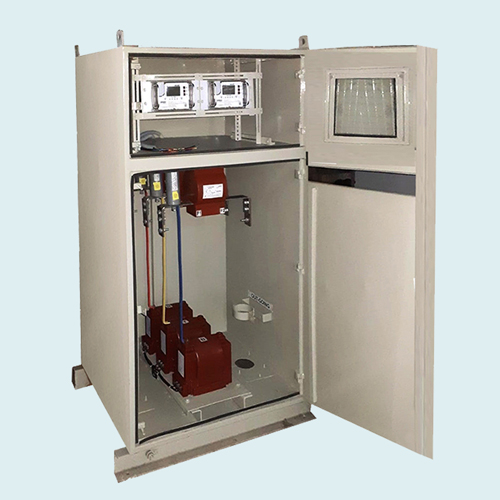

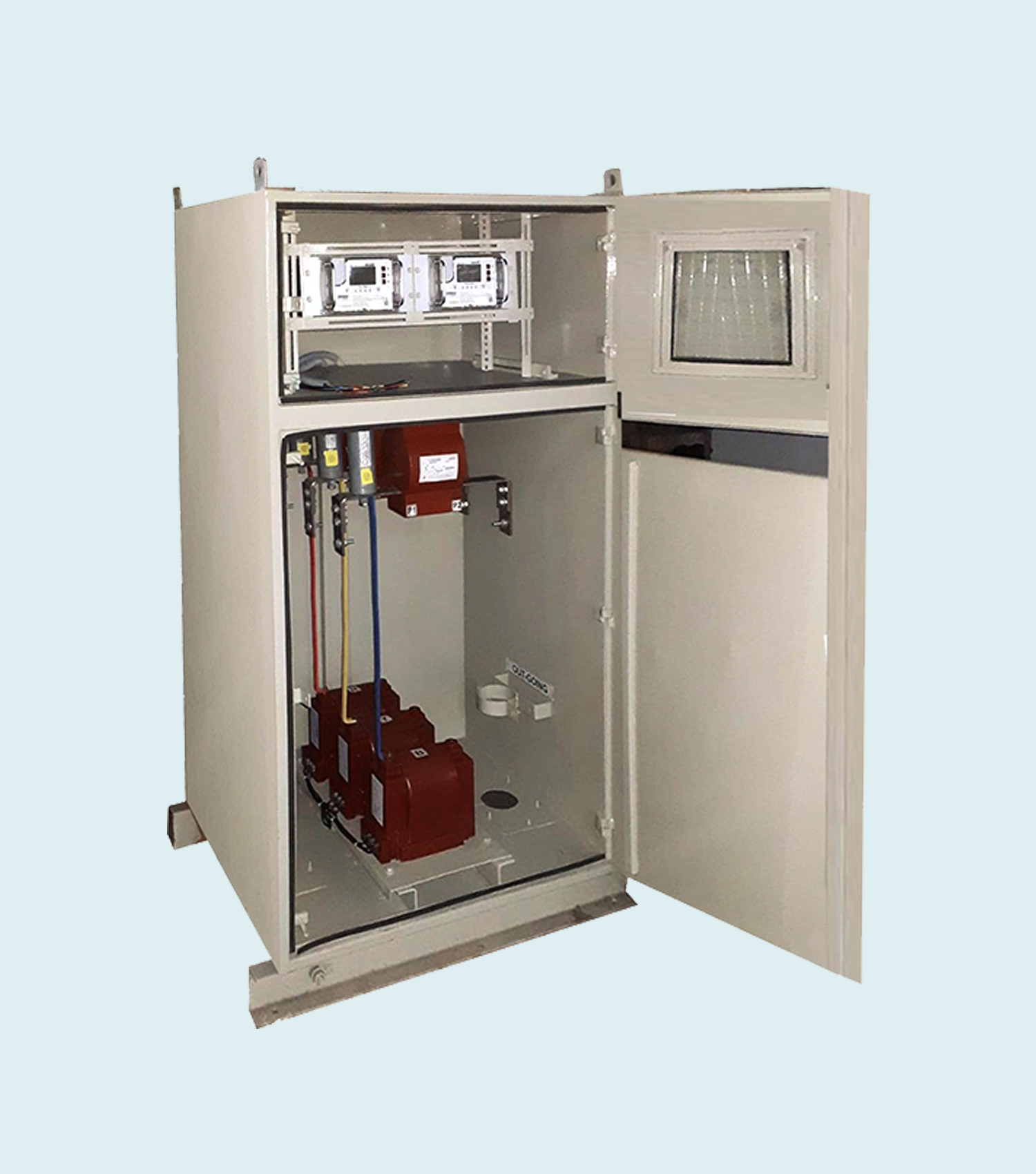

Medium Voltage Metering Cubicle
